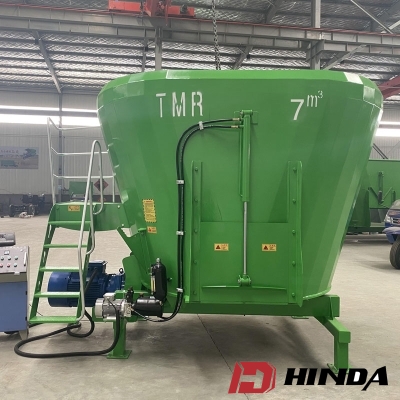

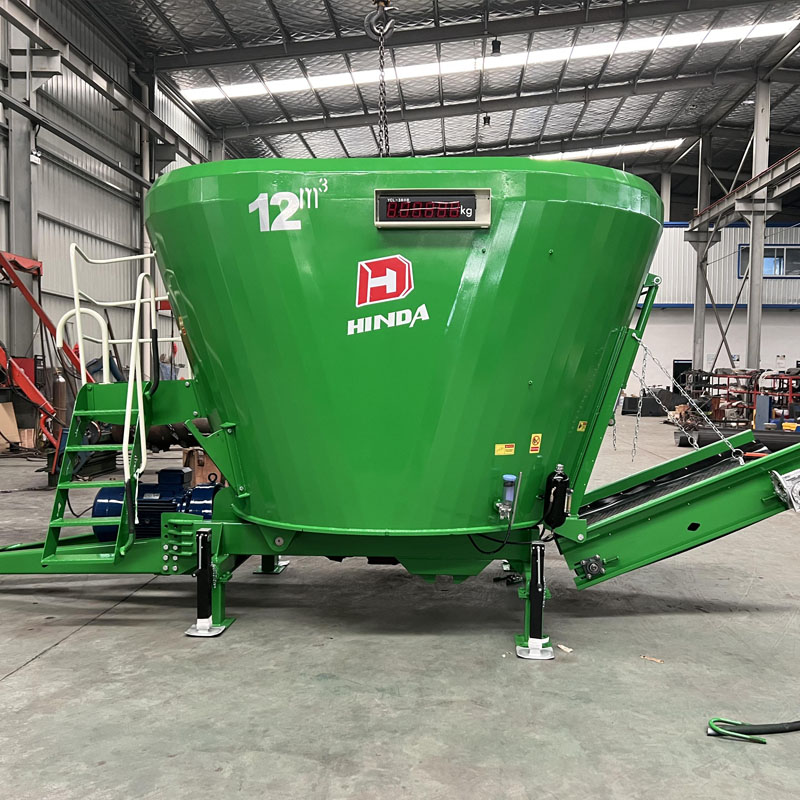

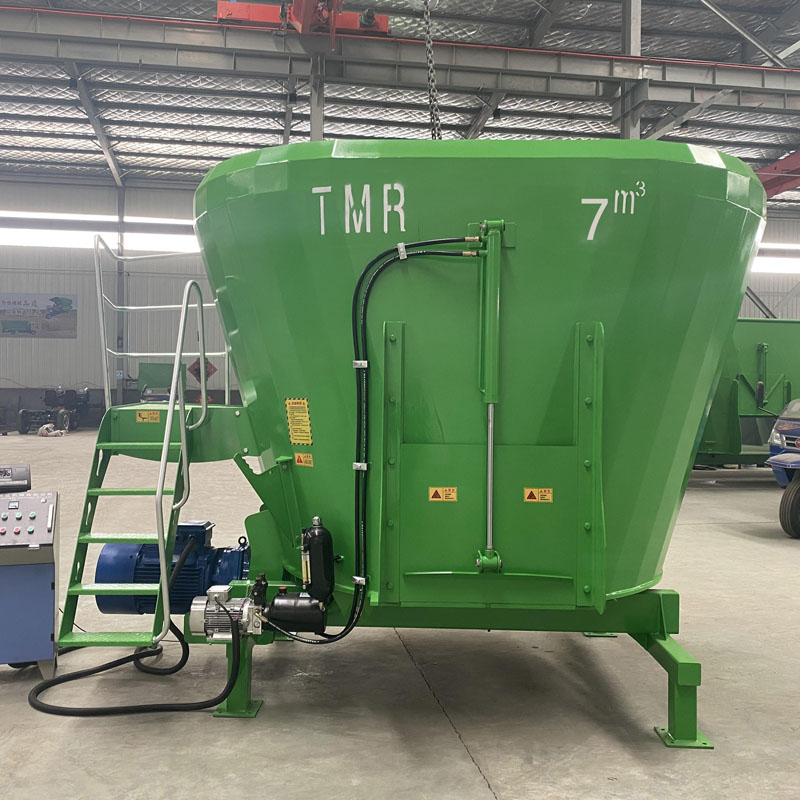

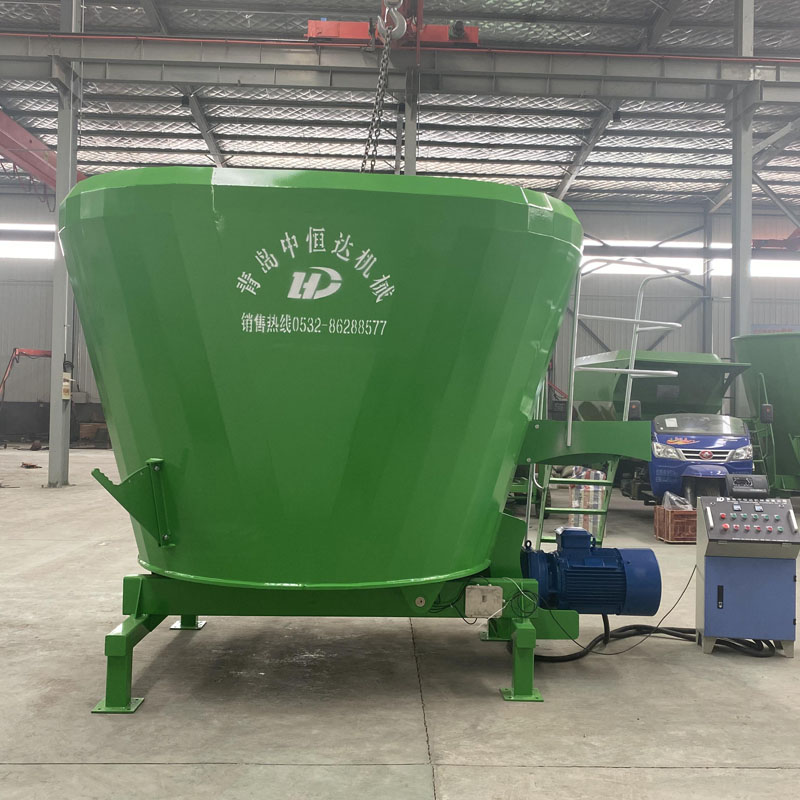

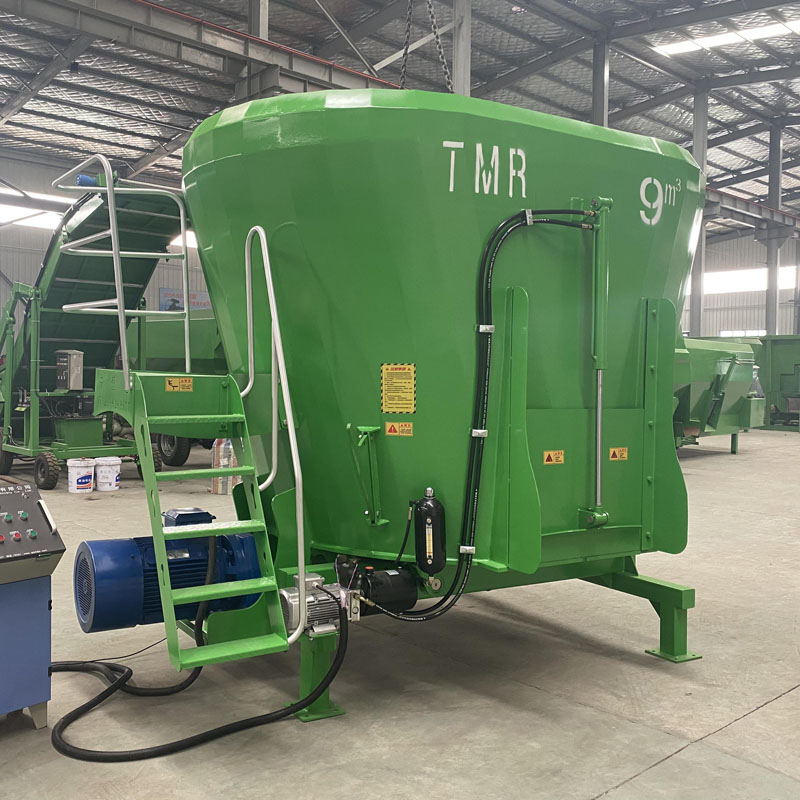

Dairy Farm Vertical TMR feed mixer
The vertical TMR feed mixer is equipped with an auger to help the trough move when handling round bales, preventing feed from staying on top in the mix. With large discharge door, large opening helps to reduce adhesion when discharging feed.
A feed mixer is an agricultural machine that farmers use to mix feed ingredients and premises. The feed Mixer machine is one of the Livestock equipment that is important for your cows.
The Feed Mixer Machine chops hay, straw, and clover bales and mixes them with corn silage, chopped beet or pulp, and other feeding materials homogenically and then distributes the mixture.
Width:3200mm
Power:22kw
Weight:2350kg
Application scenarios:Cattle farm,Sheep farm
TMR vertical feed mixer features
1. The body material is made of wear-resistant manganese steel, which is corrosion resistant and improves service life.
2. Excellent mixing and cutting system, the conical spiral auger provides excellent material movement, and the tungsten carbide alloy blade can quickly cut large long and square bales.
3. The core part of the mixer: the reducer, using the JCTT reducer brand, the planetary drive system provides simplicity for long life and heavy-duty use, almost no maintenance, except for the regular replacement of gear lubricants.
4. The equipment is equipped with a weighing device to realize precise feeding on the farm.
5. It can be customized according to the scale of the farm.
Overview of vertical TMR feed mixer
The vertical TMR feed mixer is equipped with an auger to help the trough move when handling round bales, preventing feed from staying on top in the mix. With large discharge door, large opening helps to reduce adhesion when discharging feed, hydraulic power open and close the door, easy to use, flexible and safe.
Vertical TMR feed mixer application
TMR feed mixer can improve the mixed feed and yield, because after mixing various feed and trace elements into the mixer, can make the feed composition determined by the selected feeding formula; Effectively ensure the demand for protein, milk production is greatly increased, milk quality has been greatly improved, reduce metabolic diseases.
Technical parameters of vertical TMR feed mixer
Type | 9JGL-7 | 9JGL-9 | 9JGL-12 | 9JGL-18 | 9JGL-22 | 9JGL-26 |
Auger number | 1 | 1 | 1 | 2 | 2 | 2 |
Blade material | Carbon tungsten alloy | Carbon tungsten alloy | Carbon tungsten alloy | Carbon tungsten alloy | Carbon tungsten alloy | Carbon tungsten alloy |
Blade number | 5 big blades | 7 big blades | 9 big blades | 14 big blades | 14big blades | 14big blades |
Auger rotate speed | ≧26 round/min | ≧26 round/min | ≧26 round/min | ≧26 round/min | ≧26 round/min | ≧26 round/min |
Weigh sensor | 3 pieces | 3 pieces | 3 pieces | 4 pieces | 4pieces | 4 |
Weigh display control pattern | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic |
Matched power | 22KW motor +1.5KW hydraulic discharging door motor | 30KW motor +1.5KW hydraulic discharging door motor | 37KW motor +1.5KW hydraulic discharging door motor | 44KW motor +1.5KW hydraulic discharging door motor | 60KW motor +1.5KW hydraulic discharging door motor | 74KW motor +1.5KW hydraulic discharging door motor |
Machine dimension | machine dimension： 3200*2000*2400mm | machine dimension： 3500*2240*2700mm | machine dimension： 3700*2400*2700mm | machine dimension： 5700*2240*2500mm | machine dimension： 6100*2200*2700mm | machine dimension： 6500*2400*2700mm |
Weight | 2350kg | 2950kg | 3710kg | 4920kg | 6200kg | 6950 |
