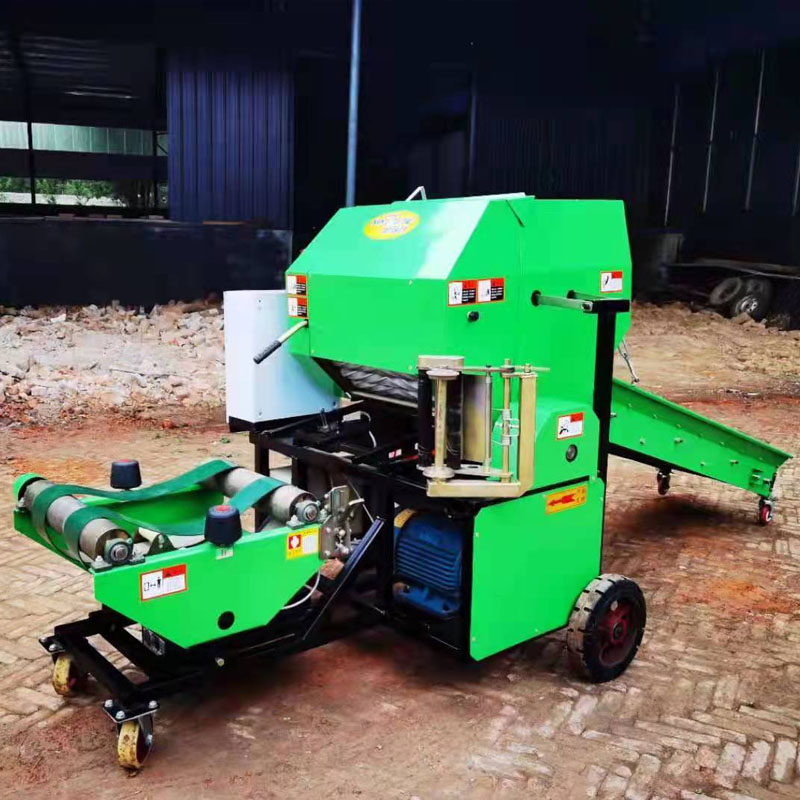

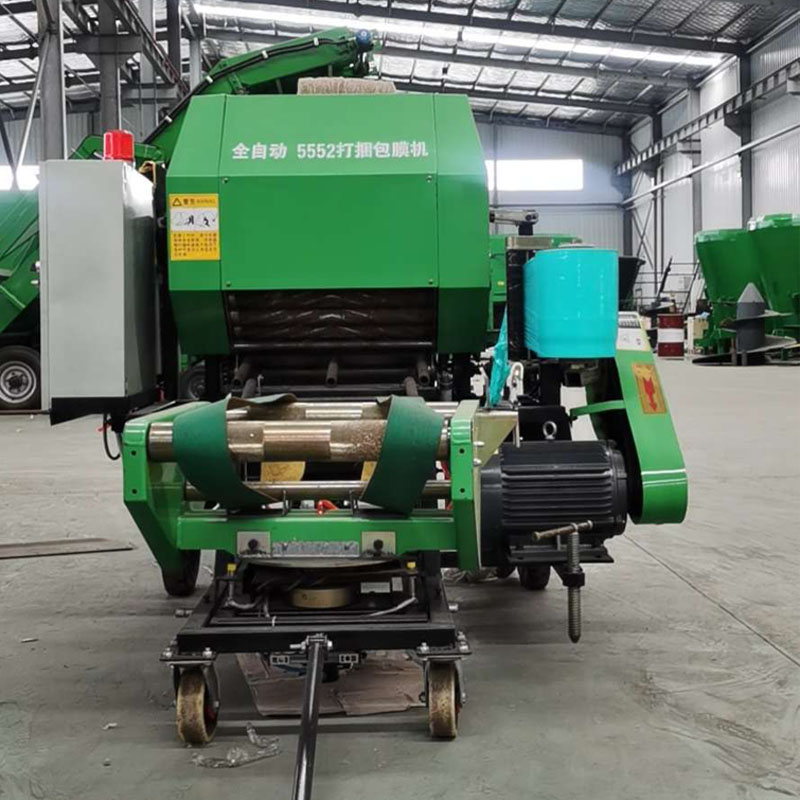

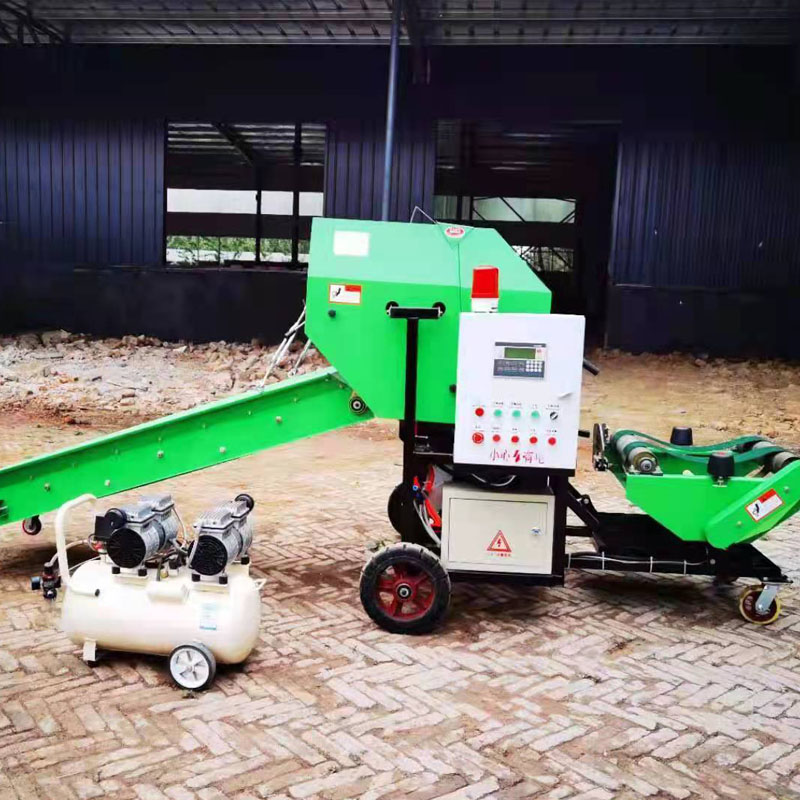

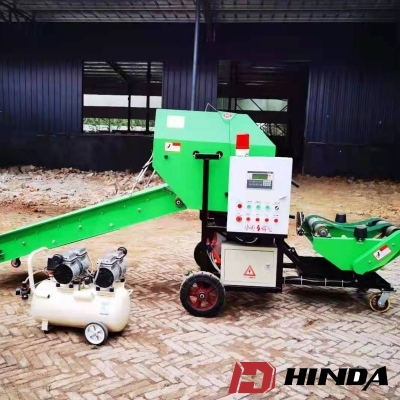

Silage packing machine
The silage packing machine can crush and knead corn stalks, wheat stalks and other forage materials into fully film sealed bundle. The processed forage materials can be stored for a long time after fermentation, and the feeding nutritional value of the forage materials is also improved.
Power：5.5kw
Rotate speed：1390r/min
Bale efficiency:50～60 butch/h
Application scenarios: Cattle farm, sheep farm
Silage packing machine features
1. All bearings of the whole machine are installed externally for easy maintenance.
2. The small conveyor belt is designed with anti-leakage design to prevent the motor from heating and save labor.
3. The 6mm thick machine wall panel is coated with acid tin galvanized sheet, which is not easy to rust.
4. The silage packing machine can be fully automated to increase production
Silage packing machine Overview
The silage packing machine can crush and knead corn stalks, wheat stalks and other forage materials into fully film sealed bundle. The processed forage materials can be stored for a long time after fermentation, and the feeding nutritional value of the forage materials is also improved.
Silage packing machine technical parameters
Matched Power | Baler motor Power：5.5kw（Three-phase 6state） Type:Y2-132M2-6 |
Film motor：0.55kw Type:MV-7134 Rotate speed：1390r/min Reducer type：BKM063 Speed ratio：1:30 | |
Piston type air compressor Type：OTS-550×2 Nominal volume：0.25m3/mim Matched power：1.5kw Rated exhaust pressure：0.8Mpa | |
Rated rate speed | （Aluminum compression roller）350r/min |
Bale efficiency | 50～60 butch/h |
Film efficiency | 15 seconds /2layers*butch 25 seconds/3layers*butch |
Butch weight | 80～90kg/butch（silage） |
Butch size | ￠550×520(mm) |
Machine weight | 600kg |
Dimension | (Length×Width×Height） 3500×1520×1400（mm） |
