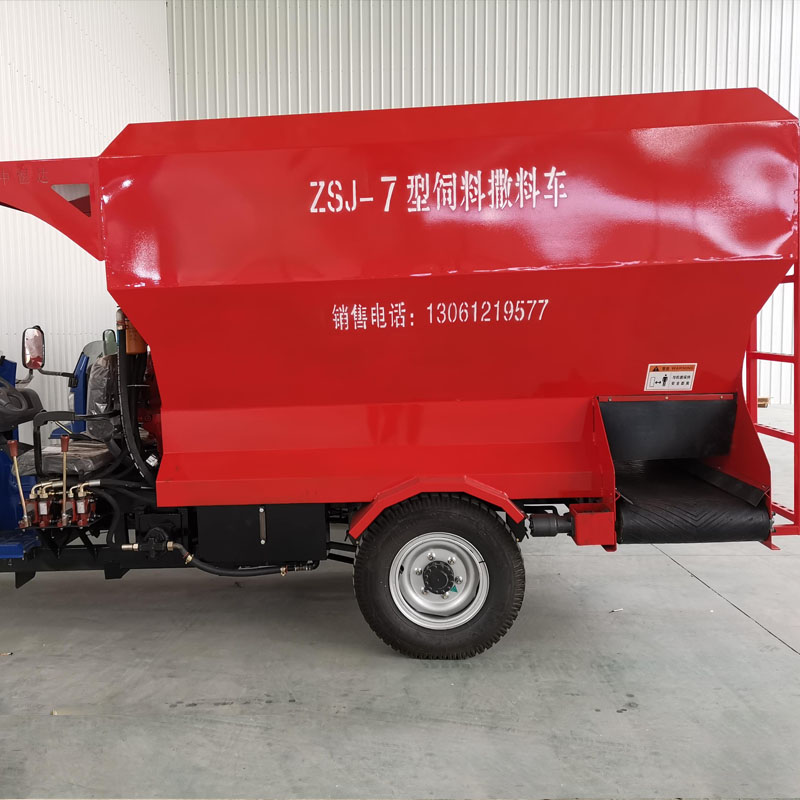

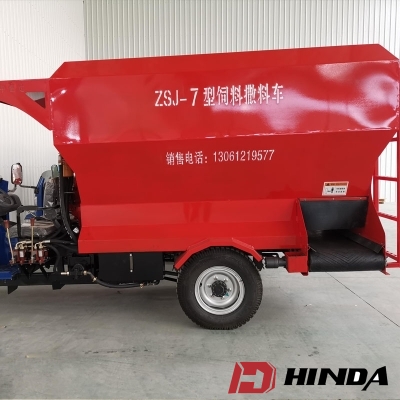

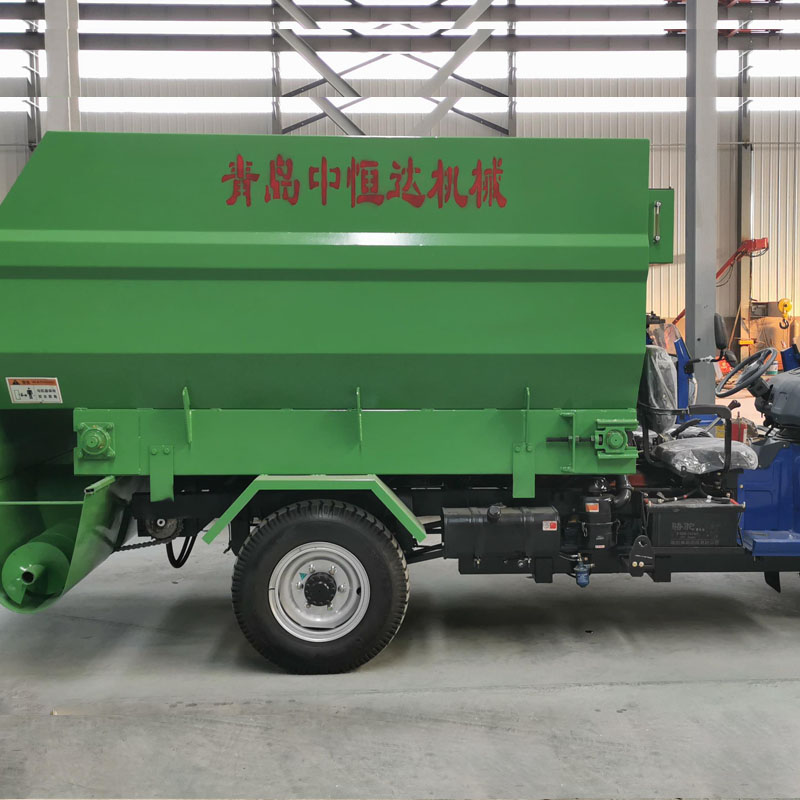

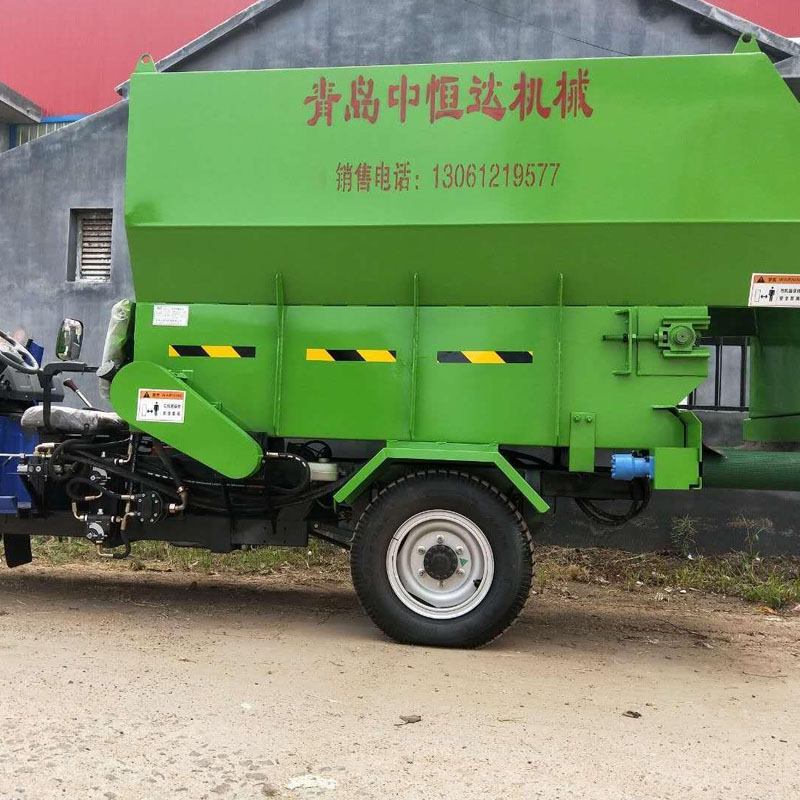

Tricycle feed spreader

    Tricycle transport, can realize both sides of the simultaneous and unilateral dusting, auger transmission, uniform dusting material without blocking,Full hydraulic control system.

    Width:1600mm

    Weight:2075kg

    Power:20kw

    Application scenarios: Cattle farm, sheep farm

Tricycle feed spreader features

1. Transported by Wuzheng tricycle, customized tricycle chassis, supporting power 28 horsepower, strong power and low energy consumption.

2.It can realize simultaneous feeding on both sides and unilateral feeding on both sides, and feed more quickly and efficiently according to the scale of the breeding site.

3. Equipped with high and low speed gears, great climbing strength, gears to adjust the spreading speed, low failure, easy maintenance

4. The auger conveys, evenly spreading the material without blocking the material.

5. Strong maneuverability, strong passability, small turning radius, more flexible and convenient.

6. The customized five-star hydraulic motor has simple structure, reliable work and long service life.

7. Weighing system and fully enclosed cab can be customized.

Overview of tricycle feed spreader

The box is made of Q235 wear-resistant manganese steel,Full hydraulic control system: customized five star hydraulic motor, simple structure, reliable work, long service life, auger transmission device, no blocking material leakage, thickened transmission belt, wear resistance, long service life

Tricycle feed spreader application

The spreader is suitable for the feeding of cattle and sheep, with short feeding time, which can retain the feed nutrition to a greater extent, and make the nutrients such as carbohydrates, fat and cellulose used simultaneously in the rumen, and greatly improve the reproduction speed of rumen microorganisms and the yield of bacteria protein: integrating resources and improving the utilization rate. All the spraying is controlled by hydraulic pressure, the direction of spraying can be adjusted according to the needs in the process of advancing, the operation is simple and practical.

Technical parameters of tricycle feed machine


Spreader type

5cbm

7m³

Matched power

28 HP

28HP

Spreading efficiency

60m/min

60m/min

Dimension

(height×width×height)

4800×1600×2400

4800×1800×2400

Gear

3+1 gear

3+1 gear

Transmission pattern

Hydraulic speed adjusting motor

Hydraulic speed adjusting motor

Outlet pattern

Auger+Belt

Auger+Belt

Spreading pattern

Spread from double sides or single side

Spread from double sides or single side

Machine weight

1824kg

1905kg


Feel free to contact us for any query.
