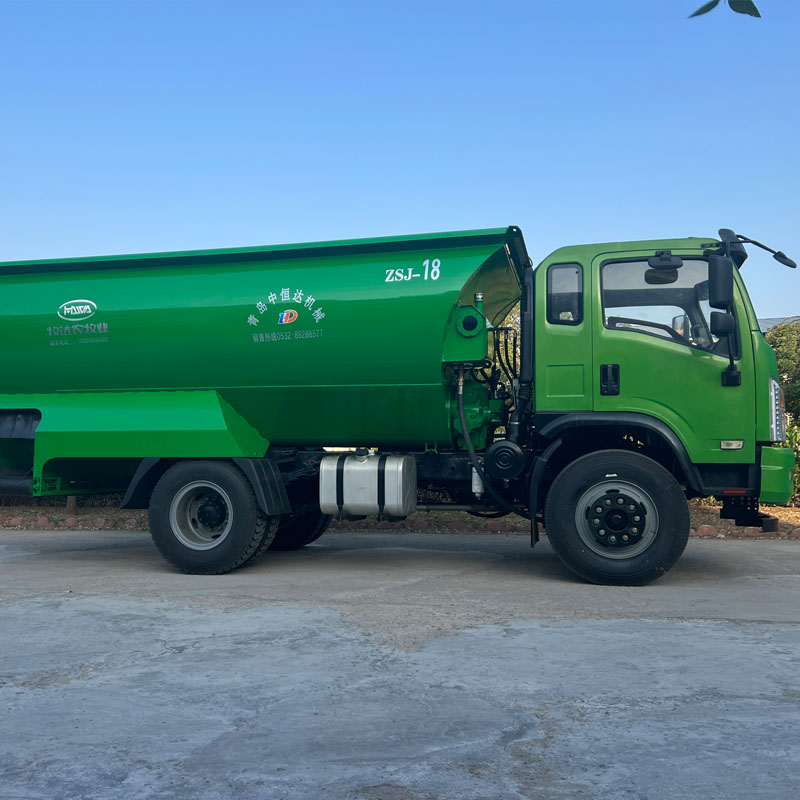

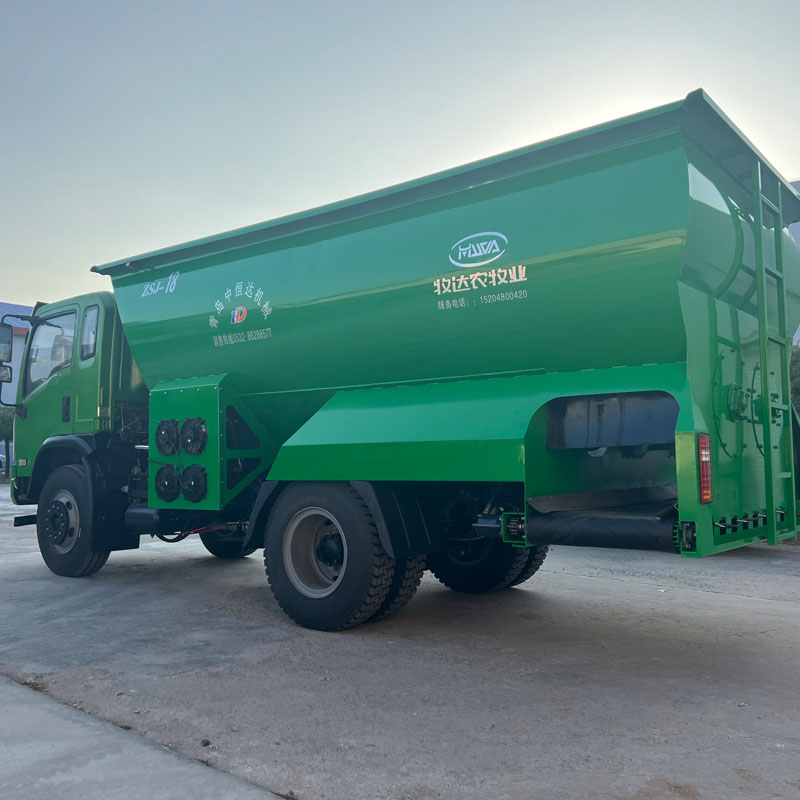

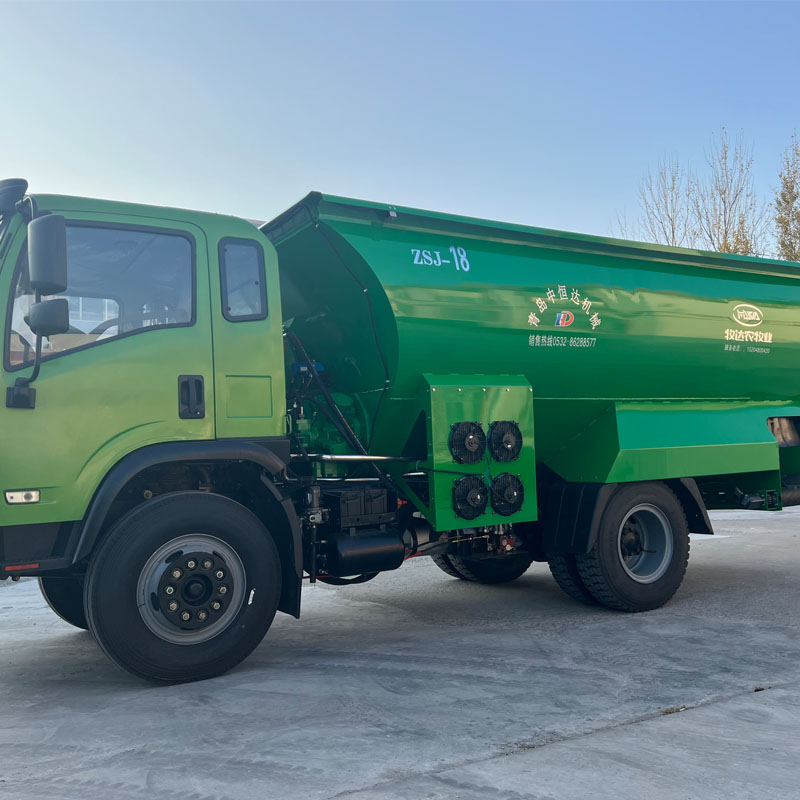

Truck Feed Spreader
A trcuk feed spreader is driven by a six-wheel light truck, low fuel consumption, strong power and good passability.It can be fed on both sides, which can reduce the labor density and reduce the cost.
Width:1800mm
Power:42kw
Weight:2980
Application scenarios: Cattle farm, sheep farm
Truck Feed Spreader features
1、Hydraulic control
2、The built-in auger conveying device improves the reliability of the equipment. The problem of high failure rate caused by too many components is solved. Spiral auger can improve the uniformity of material distribution.
Truck Feed Spreader overview
Driven by a six-wheel light truck, low fuel consumption, strong power and good passability. It can be fed on both sides, which can reduce the labor density and reduce the cost.The box body is made of Q345 (16Mn) steel plate. The material of the parts is made by CNC cutting and CNC bending. Ensure that the standards of the components are consistent. High-strength bolts are used for the connection between components to avoid welding deformation.
Truck Feed Spreader application
Can be spread on both sides, feeding faster. Fast material scattering, gear adjusting the speed of scattering. Batch feeding spreader is used in large modern farms, simple and convenient to use, easy to operate, reliable product quality, durable, simple feeding process, easy to operate, suitable for cattle and sheep feeding work
Truck Feed Spreader technical specifications
Name | Data | |
Chassis Device | Type | ZSJ-12 |
traction | Dongfeng truck pulled | |
Matched power | 80 horsepower | |
transmission type | Hydraulic transmission | |
Control method | Manual hydraulic valve& electromagnetic hydraulic valve | |
Spread Device | Tank structure | The tank is made of Q345B wear resistant manganese steel. The components are cut and bend by numerical control. |
Spread distance | 0-50cm | |
Spillage efficiency | 60m/min | |
Discharge pattern | Auger, belt | |
Applied Material | TMR feed mixer fodder | |
Material request | Water content30%-50% | |
Dimension | 6300*2100*2600mm | |
