organic fertilizer pack line
The development and research of organic manure production line and sterilization system of livestock and poultry manure will help to promote the formation of the industrial chain of harmless treatment, resource utilization and commercial management of livestock and poultry manure, achieve the goal of industrialization, marketization and large-scale production, and effectively promote the development of ecological agriculture and circular economy in the city.
Packaging production：350-450 bags/h
Chain crusher::15KW
Total operating power of the device:25KW
Overall dimensions:L:20000mm*2000mm*3800mm
Material:
Applications of organic fertilizer pack line:Organic fertilizer factory, farm
Overview of organic fertilizer pack line
The production process of cow manure organic fertilizer mainly includes mixing, fermentation, crushing, granulation, drying, cooling, screening and packaging. The production capacity of a single production line should be 1-10T /h. If it is too small, it will not reach the economic scale. If it is too large, it will increase the difficulty of transportation and storage of raw materials and finished products.
There are two main parts in the process of cow manure manure production, the early fermentation part and the late granulation part.
Features of organic fertilizer pack line
1. The pack line is suitable for: organic fertilizer, feed, lumpy materials, irregular materials, materials containing moisture, etc.
2.The output is 350-450 bags per hour, woven bags, plastic bags, paper bags, etc. can be used! Equipped with automatic sewing machine and conveyor.
3.The weighing system and the squeezing air execution system are all controlled by PLC, and operated by the Chinese LCD screen; and are designed with dust-proof, waterproof and anti-corrosion requirements.

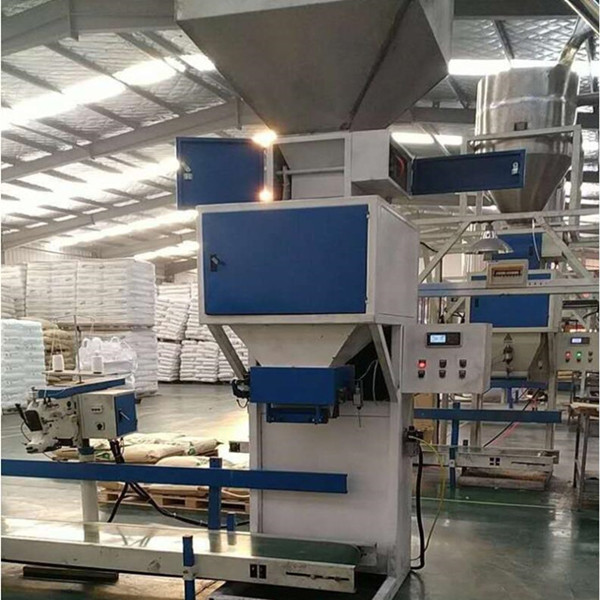

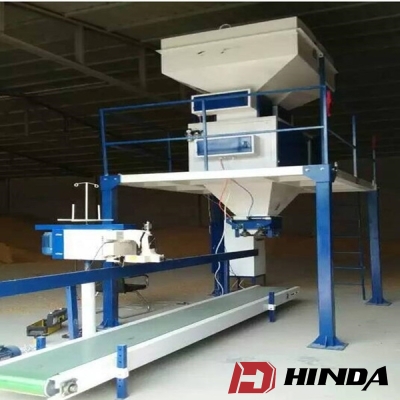

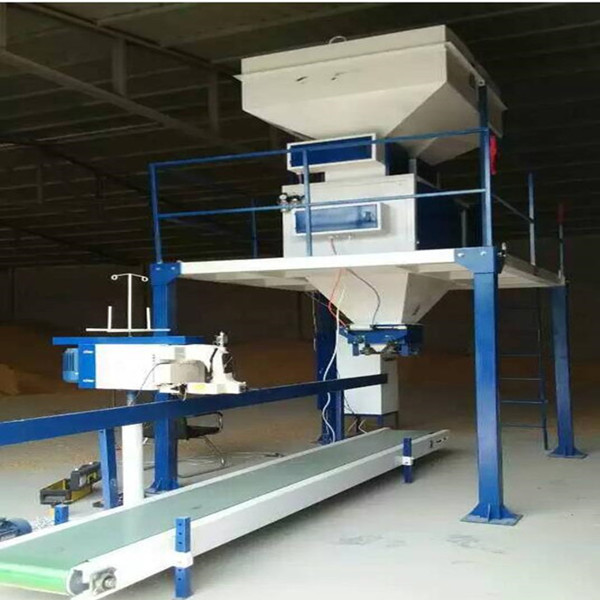

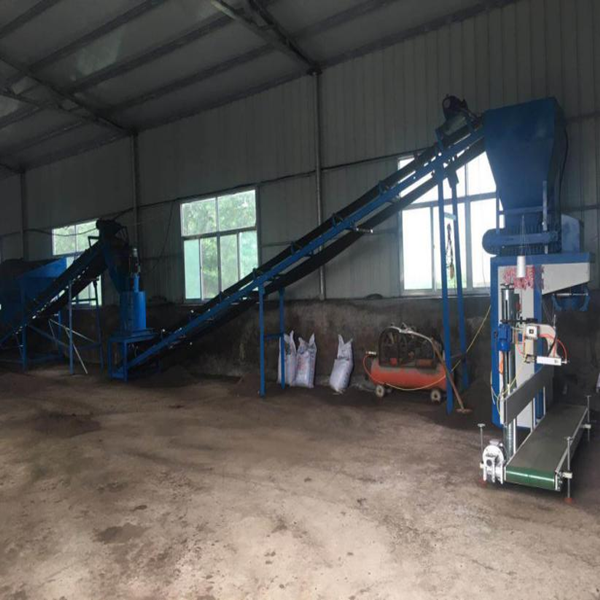

4. The organic fertilizer pack line is composed of raw material warehouse, chain crusher, roller screen, conveyor, sewing machine, automatic weighing machine (including bag clamping mechanism) and the main control box.
5. Fast speed, high precision, high sub-package output
Applications of organic fertilizer pack line
Organic fertilizer automatic packing machine is mainly suitable for organic fertilizer, compound fertilizer, compost and fertilizer production line is a processed grain, powder bulk raw material for quantitative packaging equipment, organic fertilizer automatic packaging machine combination of belt to ensure the production efficiency, using the steel one-piece structure, not only solved the corrosion resistant ability but also to ensure the material is not polluted, Ensure stable operation, prolong the service life, at the same time, the weighing system is equipped with high precision weighing sensor and weighing display, ensure the weighing accuracy
Device name | Use | Dimensions | Material | Motor Power |
Feeding bin | Raw material storage | 2500×2000×1500 | carbon steel Q235 | |
Hammer Crusher | Grinding of organic materials and large particles | 800*1200*1500 | Q235B，10mm | 30kw |
conveyor | Organic raw material delivery | 500*7m、500*10m | Q235B | 4.4kw |
Distribution box | Chint group |
