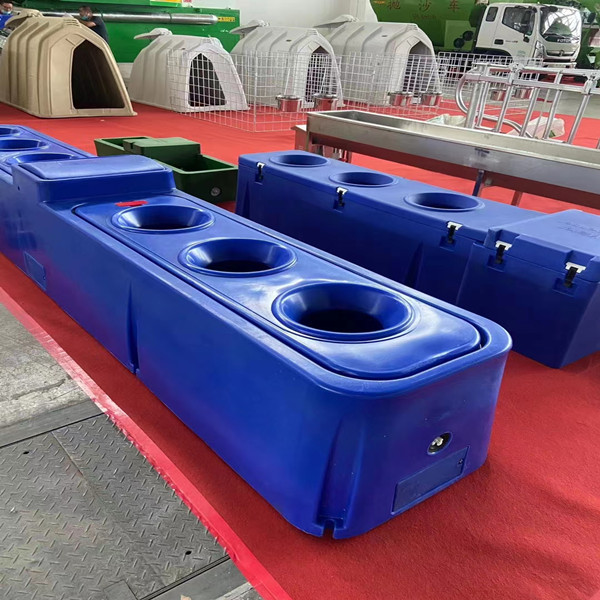

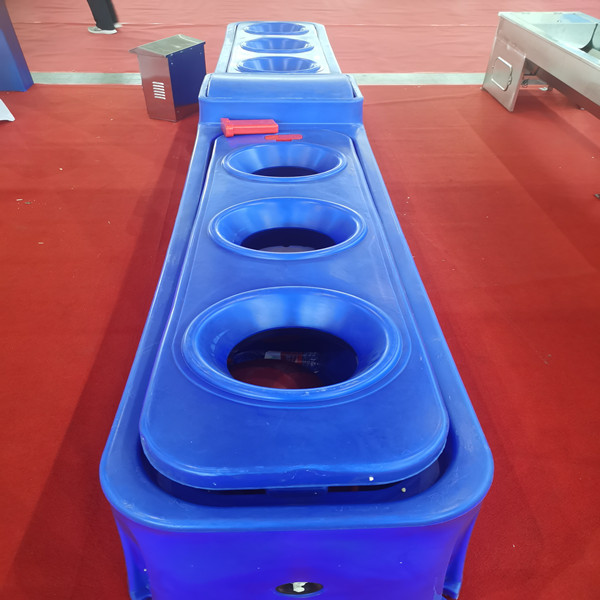

Cow drinking tough
Cow drinking tough is totally designed based on 20cm per cattle, length 4m, width 60cm, depth 60cm. It is usually fixed between the two group beds, the dairy cattle from two directions can drink the water at the same time. This design combines many functions such as water inlet, water outlet, washing and heating, to guarantee that the dairy cattle can drink clean water at any time. Under the help of water tank, the dairy cattle can intake sufficient water after meal, thus it can promote the food digestion and nutrients absorption, promote and improve the digesting function and inner circulation system, help the cattle keep a good gastrointestinal function and intake enough nutrients, it plays an important role in the promotion of milk yield.
Overall dimensions（mm）：4000mm *550mm *580mm
Water tank body：
Inside Material qualty ：polytene，Material thickness： 5mm
Insu lat ing layer：Thickness ＞50mm
Water intake pipe diameter 1 Inch
Water intake control mode ball cock
Application scenarios:
Cattle farms,sheep farms
Overview of Cow drinking tough
Constant temperature water tank is totally designed based on 20cm per cattle, length 4m, width 60cm, depth 60cm. It is usually fixed between the two group beds, the dairy cattle from two directions can drink the water at the same time. This design combines many functions such as water inlet, water outlet, washing and heating, to guarantee that the dairy cattle can drink clean water at any time. Under the help of water tank, the dairy cattle can intake sufficient water after meal, thus it can promote the food digestion and nutrients absorption, promote and improve the digesting function and inner circulation system, help the cattle keep a good gastrointestinal function and intake enough nutrients, it plays an important role in the promotion of milk yield.
Features of Cow drinking tough
1. Product advantages: imported low-density food-grade polyethylene rotomolding is used for one-time hollow molding, and the insulation layer is made of polyurethane integral foam molding, no welding, no rust, high impact strength, UV resistance, corrosion resistance, outdoor It is frozen in the sun all year round, not brittle and not easy to age.
2. Design according to the width of the actual cattle drinking water level, which can accommodate six cattle drinking water at the same time
3. All pipes of the drinking water tank are made of stainless steel to ensure that the water pipes are not rusty and the quality of drinking water is guaranteed.
4. Electrical heating control system
Applications of Cow drinking tough
The cow drinking tough of the thermostat is automatically to go to the water, to realize the water of the cow and water, and to meet the demand of scale breeding, and because it is large enough to make the long cattle drink the purpose of drinking water, so that the cow can drink water in the short term when urgent water is needed. The important thing is that in the cold, the thermostat can be combined by the temperature control probe and the electric control cabinet to achieve the function of heating, ensuring that the cows can also drink warm water in the cold winter and prevent the disease from cold
Name | Six hole livestock water tank | Anti-UV radiation | 8-10 degree |
Type | HINDA-4.0 | Intelligent temperature control | 7-15 degree |
Material | Food grade polyethylene | Daily power consumption | 8 degree |
Dimension | 4000*600*600 | Effective anti-frozen | -40degree |
Weight | 100kg | Washing device | optional |
Water gap height | 580mm | Heating device | optional |
Water volume | 250L | Tank cover | optional |
Flow | 25L/min | Guarantee | 1 year |
Heating principle | Heating oil tank | Heat function | Energy saving ,environmental friendly , safe , rapid heating |
